H1: Resin Capsule: Complete Guide to Resin Anchoring Agent for Mining Ground Support
Resin capsule, also widely named resin anchoring agent or resin anchoring cartridge, is a pre-packaged two-component chemical anchoring material designed for rock reinforcement. It is the most popular bonding medium for rock bolts, roof bolts and cable bolts in underground coal mines, metal mines, tunneling and slope stabilization projects.
H2: What Is Resin Capsule (Resin Anchoring Agent)?

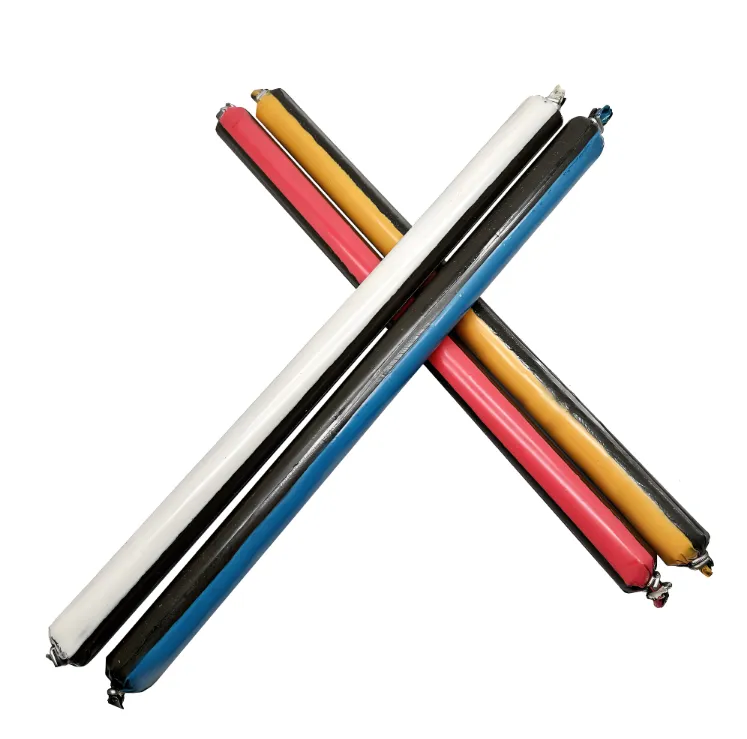

A standard resin capsule consists of a polyester film casing separated into two independent chambers. One chamber contains unsaturated polyester resin mixed with mineral fillers, and the other holds catalyst hardener. The two components stay separated before installation to avoid premature curing.
Once inserted into drilled boreholes and mixed by rotating rock bolts, the film ruptures. Resin and catalyst fully blend and trigger chemical curing, forming a high-strength solid adhesive. It tightly bonds rock bolt with surrounding rock strata to realize reliable ground support.
H3: Core Composition of Resin Anchoring Cartridge
1.Polyester Resin Mastic: Main adhesive material, determines ultimate anchoring strength
2.Catalyst Hardener: Trigger curing reaction after mixing
3.Thixotropic Fillers: Prevent resin flowing down in overhead boreholes
4.Polyester Separation Film: Isolate resin and hardener for long storage
H4: Typical Application Scenarios for Resin Capsule
1.Underground coal mine roadway roof and side wall support
2.Metal mine underground tunnel ground control
- 3.Tunneling, subway and hydraulic engineering rock reinforcement
- 4.Slope stabilization and rock nailing projects
- 5.Cable bolt anchoring for deep underground mining
Resin anchoring agent can match with rebar rock bolt, left-hand threaded bolt, right-hand rock bolt, hollow bolt and cable bolts.
- 3.Tunneling, subway and hydraulic engineering rock reinforcement
- 4.Slope stabilization and rock nailing projects
- 5.Cable bolt anchoring for deep underground mining
Resin anchoring agent can match with rebar rock bolt, left-hand threaded bolt, right-hand rock bolt, hollow bolt and cable bolts.
H5:Why Choose Factory Direct Resin Capsule Supply
We are professional manufacturer of resin anchoring agent matched with full set mining support hardware including rock bolt, barrel and wedge, steel mesh, W-strap. We provide customized size, curing formula, neutral packaging for global mining contractors and distributors.Contact us to get resin capsule technical datasheet, sample test and bulk quotation.
We are professional manufacturer of resin anchoring agent matched with full set mining support hardware including rock bolt, barrel and wedge, steel mesh, W-strap. We provide customized size, curing formula, neutral packaging for global mining contractors and distributors.
Contact us to get resin capsule technical datasheet, sample test and bulk quotation.
