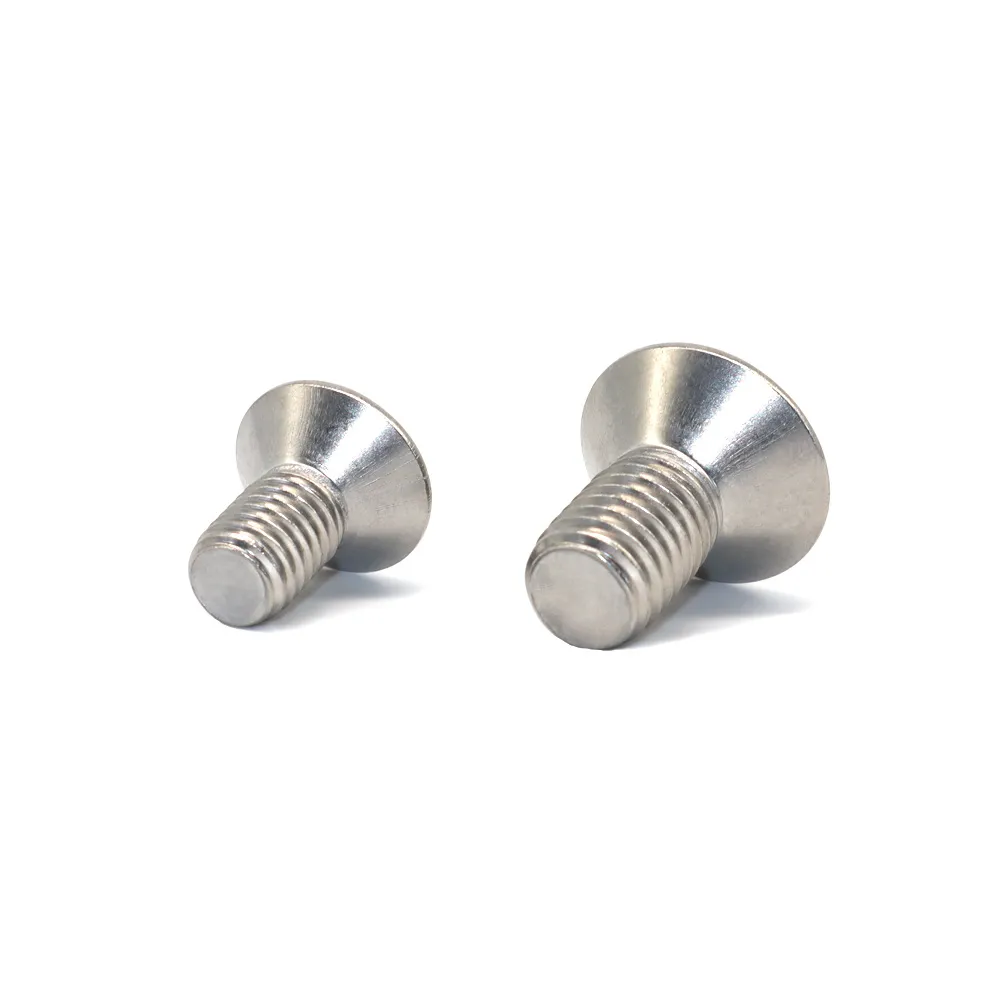

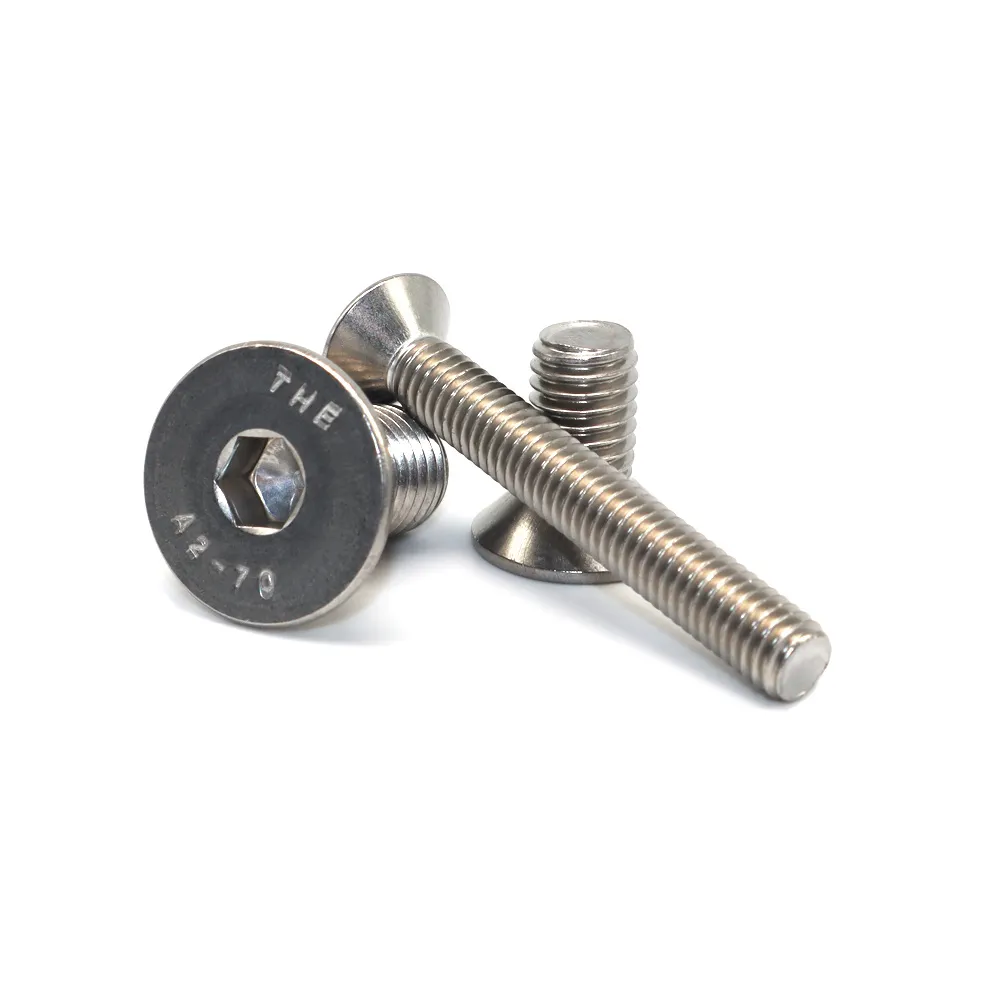

Countersunk head socket head screw
Material: Carbon Steel, SS304
Type: csk Head
Thread Size: M3 ~ M48
Surface Finish: Plain, Black, Zinc Plated, Yellow Plated, H.D.G, Self Color
Class: 8.8, 10.9, 12.9
Type: csk Head
Thread Size: M3 ~ M48
Surface Finish: Plain, Black, Zinc Plated, Yellow Plated, H.D.G, Self Color
Class: 8.8, 10.9, 12.9
Still deciding? Get samples first, Contact US !
View similar products
- Description
-
Key Attributes
Material: Carbon Steel, SS304
Type: csk Head
Thread Size: M3 ~ M48
Surface Finish: Plain, Black, Zinc Plated, Yellow Plated, H.D.G, Self Color
Class: 8.8, 10.9, 12.9Specification
Size a
+2°-0(1)
b(3) d
mink
maxd
mins
maxS
nom.min t
maxM3 90° 12 5.7 6 2.86 3 2 0.95 1.2 M4 14 一 7.64 8 3.82 4 2.5 1.55 1.8 M5 16 一 9.64 10 4.82 5 3 2.05 2.3 M6 18 24 11.57 12 5.82 6 4 2.25 2.5 M8 22 28 一 15.57 16 7.78 8 5 3.2 3.5 M10 26 32 45 19.48 20 9.78 10 6 4.1 4.4 M12 30 36 49 23.48 24 11.73 12 8 4.3 4.6 (M14) 34 40 53 26.48 27 13.73 14 10 4.5 4.8 M16 38 44 57 29.48 30 15.73 16 10 5 5.3 (M18) 42 48 61 32.38 33 17.73 18 12 5.2 5.5 M20 46 52 65 35.38 36 19.67 20 12 5.6 5.9 (M22) 60° 50 56 69 35.38 36 21.67 22 14 8.44 8.8 M24 54 60 73 38.38 39 23.67 24 14 9.87 10.3 (1)ForL≤125mm (2)For 125 (3)For L>200mm
