1. Product Overview

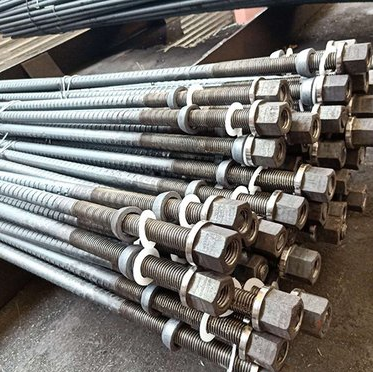

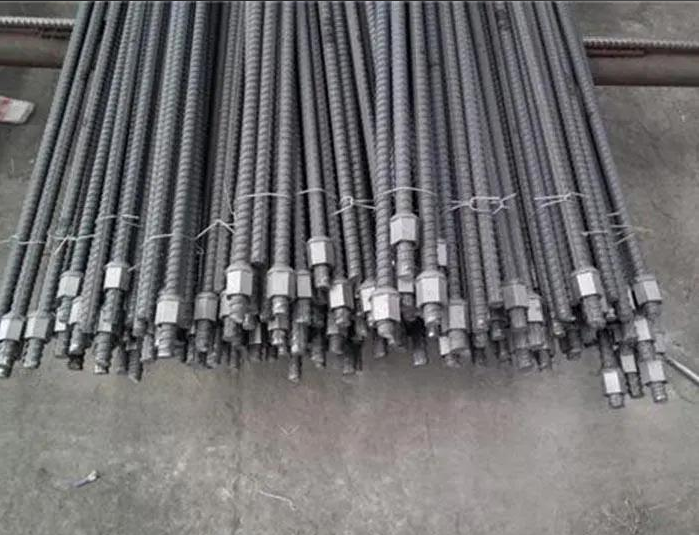

The Resin Anchor Bolt is a high-performance rock bolting solution designed to stabilize roof strata in underground coal mining operations. It combines steel reinforcement with resin encapsulation technology, providing immediate load-bearing capacity and long-term durability. Ideal for longwall and shortwall mining, it ensures worker safety by preventing roof falls in low-to-medium thickness coal seams with gentle inclines (＜25°).
(Insert product structure diagram with labeled parts: steel rod, resin capsule, expansion shell, anchor plate)
2. Core Features & Advantages
- Rapid Installation: Pre-packaged resin capsules enable quick curing (3–5 minutes), reducing downtime.
- High Load Capacity: Tensile strength up to 150 kN, withstanding dynamic loads from roof movement.
- Corrosion Resistance: Hot-dip galvanized steel rod and anti-corrosion coatings for harsh environments.
- Versatile Design: Compatible with W steel straps and metal mesh for composite roof support systems.
- Safety-Centric: Includes anti-detachment clips and torque-controlled tightening for secure anchoring.
(Insert comparison chart vs. mechanical bolts highlighting resin encapsulation benefits)
3. Technical Specifications
(Insert CAD drawing with dimensions for engineering reference)
4. Working Principle & Installation
- Drilling: Use a rotary drill to create a hole slightly larger than the bolt diameter.
- Insertion: Place the resin capsule into the hole, followed by the steel rod.
- Curing: Rotate the rod to mix resin components, forming a hardened bond with the rock.
- Tightening: Secure the anchor plate with a torque wrench to apply pre-tensioning force.
(Insert animation GIF or sequence images showing installation steps)
(Insert site photos of anchor bolts in use with W steel straps)
5. Application Scenarios
- Primary Use:
- Roof stabilization in longwall retreat mining
- Entryway support in high-stress zones
- Soft rock conditions requiring immediate reinforcement
- Alternative Solutions:
- For fractured strata, consider our Hydraulic Expansion Bolt (link to product page).
- For high-pressure environments, upgrade to Grouted Cable Bolts.
(Insert infographic on "When to Use Resin vs. Mechanical Bolts")
6. Maintenance & Safety Guidelines
- Inspection: Check resin capsules for moisture damage before use.
- Storage: Keep in dry conditions (＜60% humidity) to prevent premature curing.
- Installation Training: Provide operators with hands-on practice for proper torque application.
- Failure Prevention: Avoid over-tightening; use calibrated wrenches to prevent rod fracture.
(Insert safety checklist infographic)
7. Why Choose Our Resin Anchor Bolts?
- Certified Compliance: Meets ISO 9001, MSHA, and CE standards for mining safety.
- Cost Efficiency: Reduces labor costs by 30% compared to mechanical bolting.
- Global Support: Technical assistance available for installation audits and troubleshooting.
- Customization: Tailor rod length, resin type, and encapsulation for project-specific needs.
(Insert customer testimonials from international mines)
8. Ordering Information
- Lead Time: 20–30 days (custom lengths available).
- Packaging: Moisture-resistant bags with silica gel desiccant.
- Shipping: FOB/CIF options for global ports; bulk discounts for orders＞10,000 units.
- Contact: [Your email/phone] for quotes, CAD files, and installation manuals.
(Insert call-to-action button: "Request Sample" or "Download Technical PDF")
