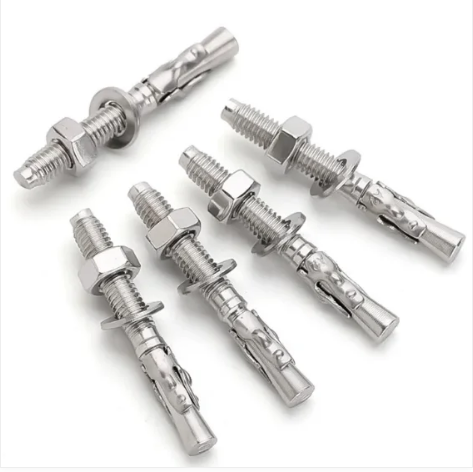

Wedge anchor bolts, also known as wedge bolts or foundation bolts, are specialized fasteners designed for securely anchoring objects into concrete substrates. They are a critical component in construction, particularly for attaching structural elements, machinery, and formwork systems to concrete foundations and walls.
Key Features and Advantages
High-Strength Fastening: Manufactured from high-grade steel (e.g., #45 steel), these bolts undergo heat treatment to achieve superior tensile strength and durability, ensuring a reliable, long-lasting hold.
Wedge-Action Design: The unique wedge mechanism expands within the drilled hole in concrete upon tightening, creating a powerful mechanical interlock. This design eliminates the need for adhesives and provides exceptional pull-out resistance.
Versatile Application: Integral to modular steel-ply formwork systems, wedge bolts are used to connect pilaster forms, attach one-piece waler clamps for aligning lumber, and secure ties for double lumber wales. They facilitate the forming of walls of various shapes and sizes.
Efficiency and Economy: Their use in systematic formwork significantly reduces labor time and cost. Setup and stripping are simplified, requiring minimal training and tools (typically just a hammer), leading to faster project completion compared to traditional job-built plywood methods.
Corrosion Resistance: Quality wedge bolts are often treated to be rust-resistant, ensuring longevity even in demanding environments like garage floors or outdoor structures.
Common Specifications and Types
Material: High-quality carbon steel (e.g., #45 steel).
Types: Available in standard lengths including short wedge bolts (for eliminating short stops in forms) and long wedge bolts. Adjustable (ADJ) variants may also be available for specific applications.
Sizes: Offered in various diameters and lengths to accommodate different wall thicknesses (from 6 inches to 48 inches) and load requirements.
Compatibility: Designed to work seamlessly with a range of formwork accessories such as snap ties, loop ties, flat ties, and turnbuckles.
Typical Applications
Concrete Formwork Systems: Securing steel-ply forms, waler clamps, and tie systems for casting concrete walls.
Machinery and Equipment Installation: Anchoring heavy machinery, industrial equipment, or garage lifts (garage floor anchor bolt) to concrete floors.
Structural Anchoring: Fixing structural steel columns, brackets, and safety barriers to concrete foundations (foundation bolt).
5
General Construction: Any application requiring a permanent, high-strength fastener into cured concrete.
