DIN6885 Double Round End Keys

Material: 45#steel

Size: M3---M48

Surface: Galvanized

Packing: Carton

Email:

liudong@tl-fastener.com

Email:

Tel:

Tel:

Still deciding? Get samples first, Contact US !

View similar products

Screws

Description

Key Attributes

Material: 45#steel

Size: M3---M48

Surface: Galvanized

Packing: Carton

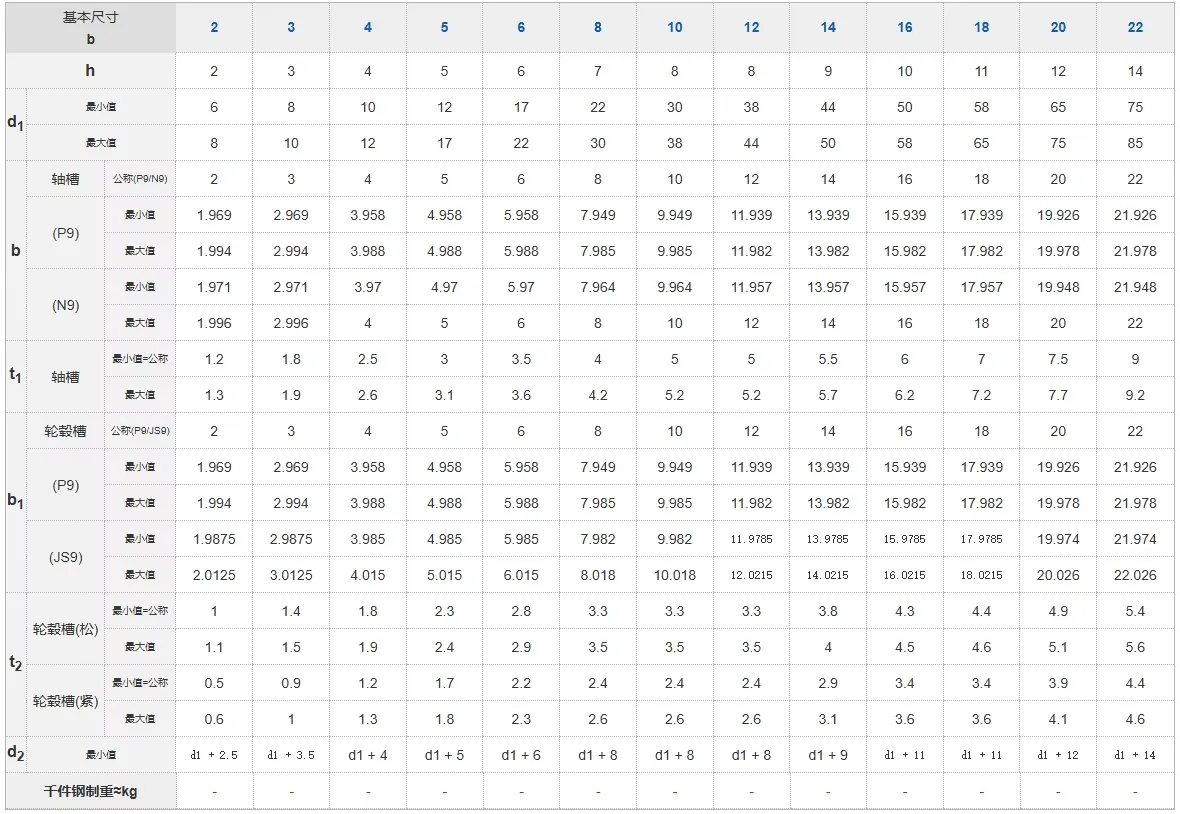

Specification

Category	Parameter Details	2	3	4	5	6	8	10	12	14	16	18	20	22
Basic Dimension b	-	2	3	4	5	6	8	10	12	14	16	18	20	22
Basic Dimension h	-	2	3	4	5	6	7	8	8	9	10	11	12	14
d1	Minimum Value	6	8	10	12	17	22	30	38	44	50	58	65	75
	Maximum Value	8	10	12	17	22	30	38	44	50	58	65	75	85
Keyway (b)	Nominal (P9/N9)	2	3	4	5	6	8	10	12	14	16	18	20	22
	P9 Minimum Value	1.969	2.969	3.958	4.958	5.958	7.949	9.949	11.939	13.939	15.939	17.939	19.926	21.926
	P9 Maximum Value	1.994	2.994	3.988	4.988	5.988	7.985	9.985	11.982	13.982	15.982	17.982	19.978	21.978
	N9 Minimum Value	1.971	2.971	3.97	4.97	5.97	7.964	9.964	11.957	13.957	15.957	17.957	19.948	21.948
	N9 Maximum Value	1.996	2.996	4	5	6	8	10	12	14	16	18	20	22
t1 Keyway	Minimum Value (= Nominal)	1.2	1.8	2.5	3	3.5	4	5	5	5.5	6	7	7.5	9
	Maximum Value	1.3	1.9	2.6	3.1	3.6	4.2	5.2	5.2	5.7	6.2	7.2	7.7	9.2
Hub Keyway (b1)	Nominal (P9/JS9)	2	3	4	5	6	8	10	12	14	16	18	20	22
	P9 Minimum Value	1.969	2.969	3.958	4.958	5.958	7.949	9.949	11.939	13.939	15.939	17.939	19.926	21.926
	P9 Maximum Value	1.994	2.994	3.988	4.988	5.988	7.985	9.985	11.982	13.982	15.982	17.982	19.978	21.978
	JS9 Minimum Value	1.9875	2.9875	3.985	4.985	5.985	7.982	9.982	11.9785	13.9785	15.9785	17.9785	19.974	21.974
	JS9 Maximum Value	2.0125	3.0125	4.015	5.015	6.015	8.018	10.018	12.0215	14.0215	16.0215	18.0215	20.026	22.026
Hub Keyway (Loose) t2	Minimum Value (= Nominal)	1	1.4	1.8	2.3	2.8	3.3	3.3	3.3	3.8	4.3	4.4	4.9	5.4
	Maximum Value	1.1	1.5	1.9	2.4	2.9	3.5	3.5	3.5	4	4.5	4.6	5.1	5.6
Hub Keyway (Tight) t2	Minimum Value (= Nominal)	0.5	0.9	1.2	1.7	2.2	2.4	2.4	2.4	2.9	3.4	3.4	3.9	4.4
	Maximum Value	0.6	1	1.3	1.8	2.3	2.6	2.6	2.6	3.1	3.6	3.6	4.1	4.6
d2	Minimum Value	d1 + 2.5	d1 + 3.5	d1 + 4	d1 + 5	d1 + 6	d1 + 8	d1 + 8	d1 + 8	d1 + 9	d1 + 11	d1 + 11	d1 + 12	d1 + 14
Weight of 1000 Steel Pieces*kg	-	-	-	-	-	-	-	-	-	-	-	-	-	-

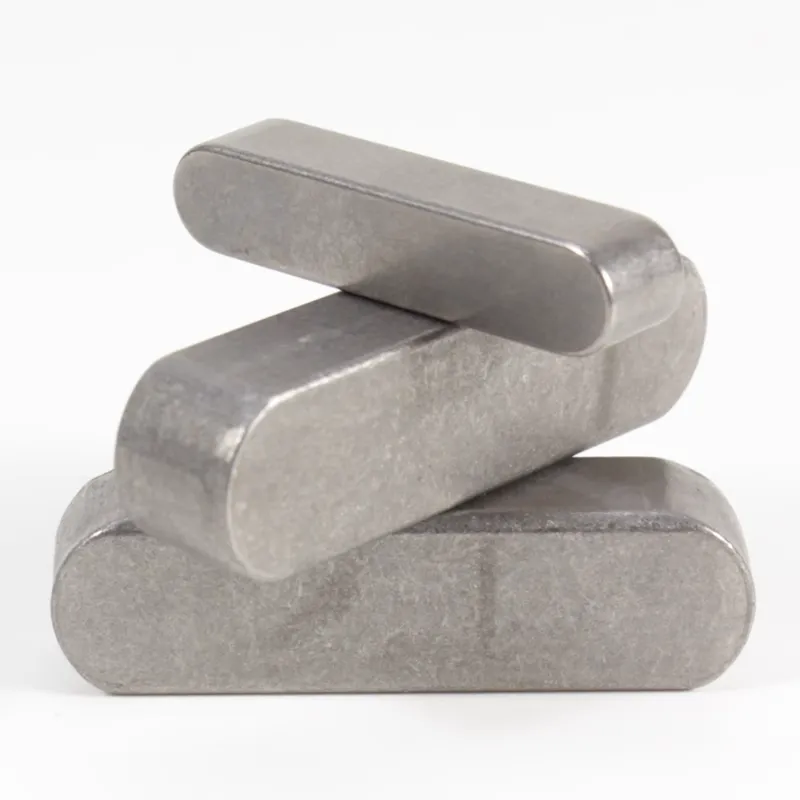

High-quality DIN6885 Double Round End Keys wholesale

【High - quality Material】The DIN6885 Double Round End Keys are made of high - quality 45# steel, which has a moderate carbon content and excellent comprehensive mechanical properties. The 45# steel has high strength, can withstand large loads, and is not prone to deformation. Meanwhile, it has good toughness, reducing the risk of cracking.

【Multiple Size Specifications Available】These DIN6885 Double Round End Keys come in a wide range of sizes, from M3 to M48. Sizes from M3 to M6 are commonly used for the fine assembly of electronic devices, small instruments, and furniture. The M8 - M16 sizes are frequently used in general machinery manufacturing and building decoration. Larger sizes of M18 and above can be applied in heavy machinery, bridge construction, and large - scale steel structure projects.

【Excellent Surface Treatment for Good Protection】The DIN6885 Double Round End Keys are treated with a fine galvanizing process. Galvanizing is a very effective metal protection method. Over long - term use, a dense zinc oxide protective film will form, providing excellent anti - rust and corrosion - resistant properties. They are suitable for use in humid environments with corrosive gases.

【Practical Packaging】The DIN6885 Double Round End Keys are packed in cartons, which have good cushioning performance. This ensures that the products remain intact during long - distance transportation and reduces damage caused by collisions and bumps.
